High Temperature Masking Caps

2024-04-10 17:45　9124 Page View

‌Product specifications

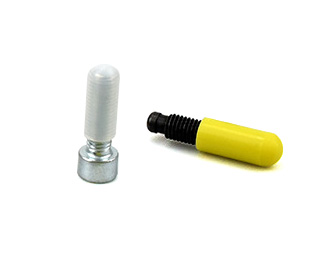

1、Product Usage:High temperature masking caps, also known as masking plugs or caps, are used in various industrial applications to protect specific areas or components from exposure to high temperatures during processes like painting, powder coating, anodizing, or other surface treatments.

2. Performance: Made of silicone material, with a temperature resistance of 250 ℃ and excellent sealing performance. The handle design is easy to install and disassemble

3. Environmentally friendly product, reusable, non polluting to the environment during installation and use, improving the quality of the target product

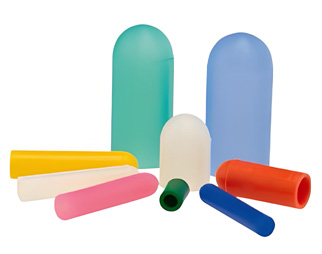

4. Color: White semi transparent, other colors available, in compliance with ROHS environmental standards

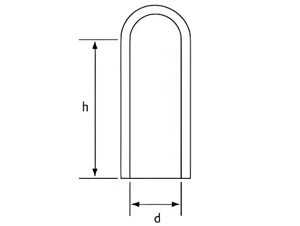

Product dimensions

Unit：mm

Number	Color	Applicable External Thread G	Applicable External Thread UNF	Applicable External Thread BSP	d(mm)	h(mm)
GWHT001	White	-	-	-	0.5	12.7
GWHT002	White	-	1/16″	-	1.6	19.1
GWHT003	White	-	1/16″	-	1.8	25.4
GWHT004	White	-	-	-	2.4	19.1
GWHT005	White	-	-	-	2.4	25.4
GWHT006	White	-	-	-	2.5	12.7
GWHT007	White	-	-	-	2.5	25.4
GWHT008	White	M3	-	-	2.8	19.1
GWHT009	White	M3	-	-	2.8	25.4
GWHT010	White	-	-	-	3.2	25.4
GWHT011	White	-	-	-	3.2	12.7
GWHT012	White	-	-	-	3.5	25.4
GWHT013	White	-	-	-	3.5	12.7
GWHT014	White	M4	-	-	3.8	19.1
GWHT015	White	M4	-	-	3.8	25.4
GWHT016	Blue	M4	-	-	3.8	12.7
GWHT017	Blue	M4	-	-	3.8	19.1
GWHT018	Blue	M4	-	-	3.8	25.4
GWHT019	Blue	M4	-	-	4	25.4
GWHT020	Blue	M4	-	-	4	12.7
GWHT021	Blue	M4	-	-	4	38.1
GWHT022	Blue	M4	-	-	4	12.7
GWHT023	Blue	M4	-	-	4	25.4
GWHT024	Blue	M4	-	-	4	38.1
GWHT025	Blue	M4	3/16″	-	4.2	25.4
GWHT026	White	-	3/16″	-	4.4	25.4
GWHT027	White	-	3/16″	-	4.4	12.7
GWHT028	White	-	3/16″	-	4.4	38.1
GWHT029	White	-	3/16″	-	4.6	25.4
GWHT030	White	M5	-	-	4.7	28.6
GWHT031	Green	M5	-	-	4.7	28.6
GWHT032	White	M5	-	-	4.8	12.7
GWHT033	Green	M5	-	-	4.8	19.1
GWHT034	Green	M5	-	-	4.8	12.7
GWHT035	White	-	-	-	5.5	25.4
GWHT036	White	M6	-	-	5.7	12.7
GWHT037	White	M6	-	-	5.7	25.4
GWHT038	White	M6	-	-	5.7	38.1
GWHT039	Pink	M6	-	-	5.7	12.7
GWHT040	Pink	M6	-	-	5.7	25.4
GWHT041	Pink	M6	-	-	5.7	38.1
GWHT042	Pink	M6	1/4″	-	5.9	28.6
GWHT043	Pink	M6	1/4″	-	5.9	12.7
GWHT044	Pink	M6	1/4″	-	5.9	38.1
GWHT045	Pink	M6	1/4″	-	5.9	12.7
GWHT046	Pink	M6	1/4″	-	5.9	28.6
GWHT047	Pink	M6	1/4″	-	5.9	38.1
GWHT048	White	-	-	-	6.4	25.4
GWHT049	White	-	-	-	6.4	38.1
GWHT050	White	-	5/16″	-	7.1	25.4
GWHT051	White	-	5/16″	-	7.1	12.7
GWHT052	White	M8	5/16″	1/16″	7.5	38.1
GWHT053	Yellow	M8	5/16″	1/16″	7.5	38.1
GWHT054	Yellow	M8	-	-	7.5	25.4
GWHT055	White	M8	-	-	7.9	25.4
GWHT056	White	M8	-	-	7.9	38.1
GWHT057	Yellow	M8	-	-	7.9	25.4
GWHT058	Yellow	M8	-	-	7.9	38.1
GWHT059	White	-	-	-	8.7	25.4
GWHT060	White	-	-	-	9	38.1
GWHT061	White	M10	-	1/8″	9.5	25.4
GWHT062	White	M10	-	1/8″	9.5	12.7
GWHT063	White	M10	-	1/8″	9.5	19.1
GWHT064	White	M10	-	1/8″	9.5	38.1
GWHT065	Orange	M10	-	1/8″	9.5	12.7
GWHT066	Orange	M10	-	1/8″	9.5	19.1
GWHT067	Orange	M10	-	1/8″	9.5	25.4
GWHT068	Orange	M10	-	1/8″	9.5	38.1
GWHT069	White	-	-	-	10.3	25.4
GWHT070	White	-	7/16″	-	11.1	25.4
GWHT071	White	-	-	-	11.6	25.4
GWHT072	White	M12	-	-	11.6	38.1
GWHT073	White	M12	1/2″	-	11.9	25.4
GWHT074	White	-	1/2″	-	12.2	38.1
GWHT075	White	-	1/2″	1/4″	12.7	38.1
GWHT076	White	-	1/2″	1/4″	12.7	76.2
GWHT077	White	-	1/2″	1/4″	12.7	101.6
GWHT078	White	M14	-	-	13.6	38.1
GWHT079	White	M14	-	-	13.6	76.2
GWHT080	White	M15	-	-	14.3	38.1
GWHT081	White	M15	-	-	14.3	16.7
GWHT082	White	M15	-	-	14.3	27.9
GWHT083	White	-	-	-	15.2	38.1
GWHT084	White	M17	5/8″	3/8″	15.9	38.1
GWHT085	White	M17	5/8″	3/8″	15.9	31.8
GWHT086	White	M17	5/8″	3/8″	15.9	57.2
GWHT087	White	M17	5/8″	3/8″	15.9	63.5
GWHT088	White	-	-	-	17.5	15.9
GWHT089	White	-	-	-	17.5	38.1
GWHT090	White	-	-	-	17.5	44.5
GWHT091	White	-	-	-	17.5	63.5
GWHT092	White	-	-	-	18.5	38.1
GWHT093	White	-	-	-	18.5	109.9
GWHT094	White	M20	3/4″	-	19.1	38.1
GWHT095	White	M20	3/4″	-	19.1	48.9
GWHT096	White	M20	3/4″	-	19.1	88.9
GWHT097	White	M20	3/4″	-	19.1	109.2
GWHT098	Aqua	M20	3/4″	-	19.1	38.1
GWHT099	Aqua	M20	3/4″	-	19.1	48.9
GWHT100	Aqua	M20	3/4″	-	19.1	88.9
GWHT101	Aqua	M20	3/4″	-	19.1	109.2
GWHT102	本色	-	-	-	19.8	38.1
GWHT103	White	M22	7/8″	1/2″	20.6	38.1
GWHT104	White	M22	7/8″	1/2″	20.6	25.4
GWHT105	Pale Blue	M22	7/8″	1/2″	20.6	25.4
GWHT106	Pale Blue	M22	7/8″	1/2″	20.6	38.1
GWHT107	White	M22	7/8″	-	21.5	72.2
GWHT108	Pale Blue	M22	7/8″	-	21.5	72.2
GWHT109	White	-	-	-	22.2	38.1
GWHT110	White	M24	-	-	23.8	38.1
GWHT111	White	-	-	-	24.6	38.1
GWHT112	White	-	-	-	24.6	101.6
GWHT113	White	M27	1″	-	25.4	20.8
GWHT114	White	M27	1″	-	25.4	50.8
GWHT115	White	M27	1″	-	25.4	50.8
GWHT116	White	-	-	-	27	50.8
GWHT117	White	-	-	-	27.5	76.2
GWHT118	White	M30	-	-	28.6	38.1
GWHT119	White	-	-	-	30.1	59
GWHT120	White	M33	11/2″	1″	31.8	38.1
GWHT121	White	-	-	-	34.3	44.5
GWHT122	White	M39	11/2″	-	38.1	25.4
GWHT123	White	M39	11/2″	-	38.1	38.1
GWHT124	White	M39	11/2″	-	38.1	44.5
GWHT125	White	-	-	11/4″	41.3	50.8
GWHT126	White	-	13/4″	-	44.5	38.1
GWHT127	White	-	13/4″	-	44.5	50.8
GWHT128	White	-	-	11/2″	47.6	50.8
GWHT129	White	-	-	-	50.8	50.8
GWHT130	White	-	-	-	53.5	50.8

Packing
