T-Shaped Silicone Stopper

2024-07-20 15:37　7131 Page View

‌‌‌

Product description

1. Product Use: High-temp shielding for electroplating, anodizing, painting; regular transport protection.

2. Performance: Silicone, high-temp/corrosion/acid/aging resistant, good sealing, easy to install/remove.

3. Eco-friendly, reusable, pollution-free in use, improves product quality.

4. Color: White translucent, other colors available; ROHS compliant.

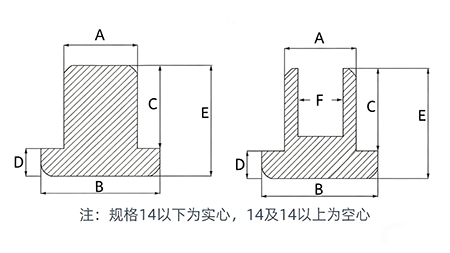

‌Product specifications

Product Code	Specification Dimensions (mm)
Product Code	A	B	C	D	F
HZT001	2.7	5.5	5	2	0
HZT002	3.2	6.9	7	2.5	0
HZT003	3.3	6.5	6	1.6	0
HZT004	3.5	6.5	6	2	0
HZT005	3.8	7	6	1.6	0
HZT006	4.15	9.5	7	2.5	0
HZT007	4.3	8	6	1.7	0
HZT008	4.5	7.5	6	2.2	0
HZT009	4.8	9	7	1.6	0
HZT010	5.2	12	8	2.8	0
HZT011	5.3	9.5	7	1.8	0
HZT012	5.5	8.5	7	2	0
HZT013	5.8	10	8	2	0
HZT014	6.2	13	8	3.5	0
HZT015	6.3	10.5	8	2.2	0
HZT016	6.5	9.5	7	2.2	0
HZT017	6.8	11	8	2.2	0
HZT018	7.2	14	9	3.5	0
HZT019	7.3	11.5	8	2.2	0
HZT020	7.5	10.5	8	2.2	0
HZT021	7.8	12	5	2.2	0
HZT022	8.2	15	9	3.5	0
HZT023	8.3	11	8	2.2	0
HZT024	8.5	11.5	8	2	0
HZT025	9.2	16	9	3.5	0
HZT026	9.5	12.5	8	2.2	0
HZT027	10.2	18	10	3.5	0
HZT028	10.5	13.5	9	2.2	0
HZT029	11.2	19	10	3	0
HZT030	11.5	14.5	9	2.2	0
HZT031	12.3	20	10	3	0
HZT032	12.5	15.5	10	2.2	0
HZT033	13	21	10	4	0
HZT034	13.5	16.5	10	2.2	0
HZT035	14	18	10	2.2	9
HZT036	15	23	10	4	6
HZT037	15.5	20	10	3	6
HZT038	16	24	10	4	7
HZT039	17	25	10	4	7
HZT040	18	26	10	4	8
HZT041	19	27	10	4	9
HZT042	20	28	10	4	10

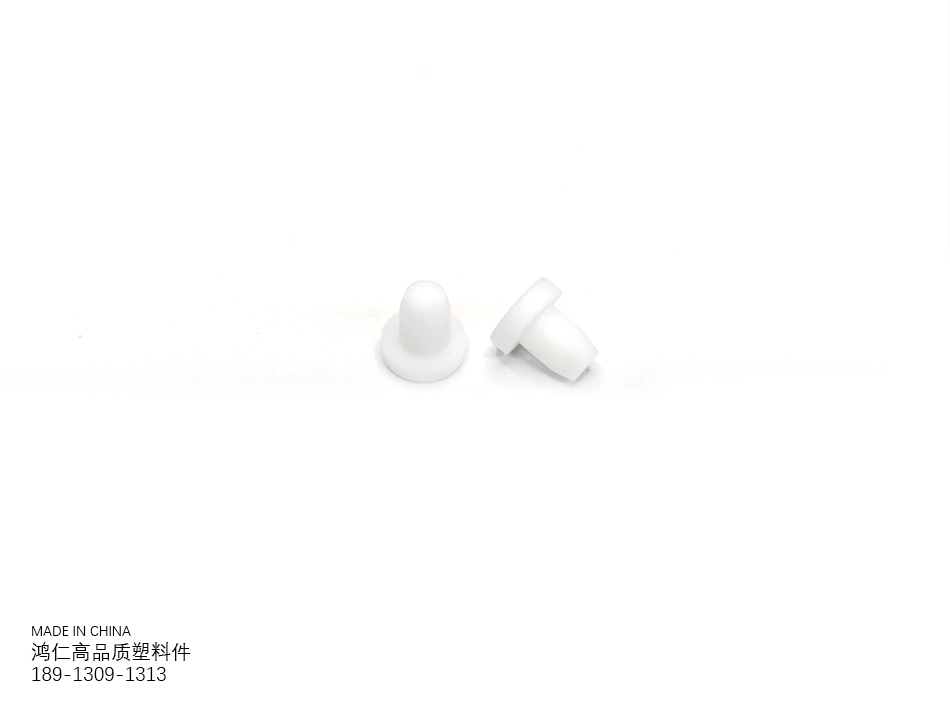

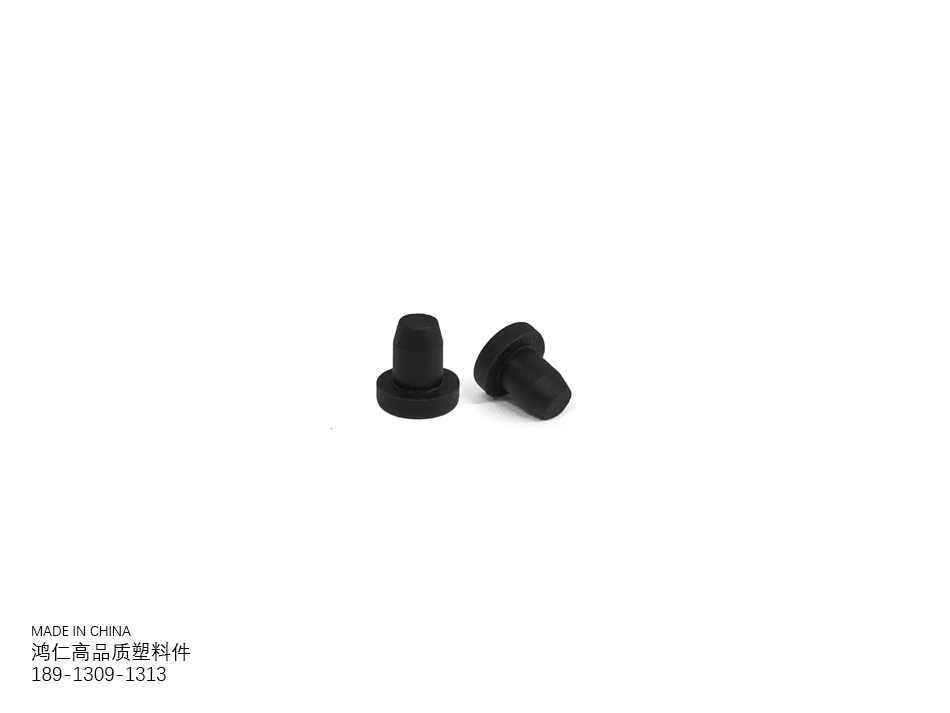

Product images

Packing
