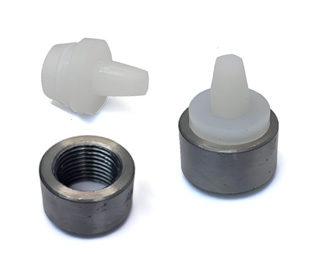

NPT High Temperature Masking Plugs

2024-04-10 17:45　9037 Page View

Product Specifications

1、Product Usage:Applications include Powder Coating, E-Coating, Plating and Anodizing.Blocking threaded holes or ordinary holes.

2. Performance: Made of silicone material, with a temperature resistance of 250 ℃ and excellent sealing performance. The handle design is easy to install and disassemble.

3. Environmentally friendly product, reusable, non polluting to the environment during installation and use, improving the quality of the target product.

4. Color: White semi transparent, other colors available, in compliance with ROHS environmental standards.

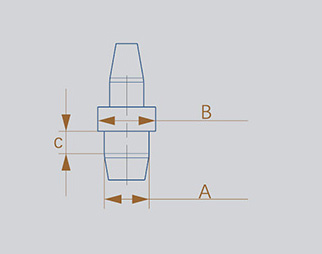

Product dimensions

Unit:mm

Number	Applicable Inside Thread A	B	C
GWDT-NPT1/2	NTP 1/2	23	4.5
GWDT-NPT3/8	NTP 3/8	19	4.5
GWDT-NPT1/4	NTP 1/4	16	4.5
GWDT-NPT1/8	NTP 1/8	11.9	4.5

Packing

NPT

Previous Next

High Temperature Masking Caps

Noting

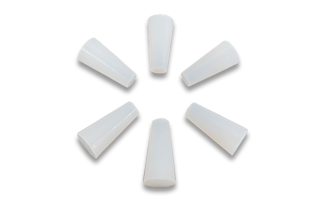

High Temperature Straight Plug

‌High-Temperature Flangeless PlugsNatural silicone rubber temperature 250 degreesUsed to cover holes exposed to the surrounding environmentConical rings and hollow structures are suitable for coveringA variety of different sizes of holesThe pull-out adjuster makes installation and removal easier Number Metric Thread American Thread Inch Thread d1 (mm) D (mm) h (mm) GWZS001 M6 1/4 - 4 6 25.4 GWZS002 M8

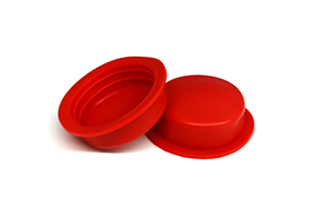

High Temperature Masking Caps

High temperature masking caps, also known as masking plugs or caps

High Temperature Masking Caps

High temperature masking caps, also known as masking plugs or caps

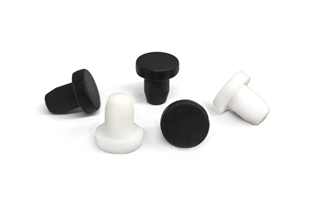

Round Dome Tube Insert Glides
