Rubber Cover Plug/Rubber Plug Cap

2024-07-25 14:58　5625 Page View

‌‌‌

Product description

1. Product Use: For internally threaded holes, pipes, cylinders, etc., to prevent dust, leakage, seal and protect internal structures.

2. Performance: High - quality rubber, good elasticity and sealing, fits internal threads tightly, easy to install and remove.

3. Eco - friendly, reusable, no pollution during use, ensuring equipment quality.

4. Color: Red, customizable in other colors.

‌Product specifications

Product Code	Matching Metric Thread	Dimension (mm)

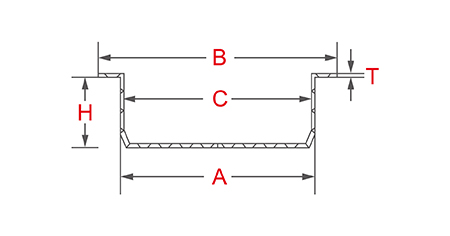

Product Code	Matching Metric Thread	A	B	H	C	T
HZ001	M4	3.2	5.4	4	2.2	0.9
HZ002	M5	4.16	5	3.9	2.4	1
HZ003	M6	5.3	8.5	6	3.5	1.5
HZ004	M7	6.9	10.5	7.2	5	1
HZ005	M8	7.1	11.6	6.5	4.5	1.5
HZ006	M10	8.9	11.4	6.2	6.8	0.8
HZ007	M11	9.9	14	9	7.8	1
HZ008	M12	10.8	14.5	8.5	8	1
HZ009	M14	13	17	9.5	11	1
HZ010	M15	13.8	16.6	10.4	11	1.1
HZ011	M16	14.8	18.5	10	13.8	1
HZ012	M18	17	21	11	15.5	1
HZ013	M19	17.5	21.5	11.5	15	1.1
HZ014	M20	19.1	23.8	12	17	1
HZ015	M22	20.7	26	11	17	1.3
HZ016	M24	22.5	28	11.5	20	1.2
HZ017	M26	24.5	28.7	10	22	1
HZ018	M27	25.7	30	11	22.5	1.5
HZ019	M29	27.5	33.4	10.5	23.6	1.3
HZ020	M30	28.3	34	12	25	1.3
HZ021	M33	31	37	11	29	0.85
HZ022	M34	32.5	37	11	29	0.85
HZ023	M36	34.5	38	12.2	28	1.2
HZ024	M38	36.5	43	13	35	1.5
HZ025	M39	37.5	43.5	12	33.6	1.2
HZ026	M42	40.5	46	14	36.7	1.5
HZ027	M45	43.5	51	13	39	1.5
HZ028	M48	45.8	54	13	42	1.8
HZ029	M52	51	63	20	47	1.6
HZ030	M54	53	61	12	51	1.5
HZ031	M60	59	69	57	13	1.6
HZ032	M62	60	66	14	57.5	1.8

Product Code	Matching Smooth Hole Thread	Dimension (mm)
Product Code	Matching Smooth Hole Thread	A	B	H	C	T
HZ033	φ3	3.2	5.4	4	2.2	0.9
HZ034	φ4	4.16	5	3.9	2.4	1
HZ035	φ4.5	4.8	7.7	7	2.5	1
HZ036	φ5	5.3	8.5	6	3.5	1.5
HZ037	φ5.5	5.6	9.5	6.8	4.2	1
HZ038	φ6.0	6.35	9	7	2.5	1.4
HZ039	φ6.5	6.6	10.5	7.2	5	1
HZ040	φ7	7.1	11.6	6.5	4.5	1.5
HZ041	φ7.5	7.8	11.5	8	6.25	1
HZ042	φ8.0	8.3	10.8	6.5	6.8	1
HZ043	φ9.0	8.9	11.4	6.2	6.8	0.8
HZ044	φ9.5	9.9	14	9	7.8	1
HZ045	φ11	11.3	14	9.2	9.4	0.9
HZ046	φ14	13.8	18	9	12	1
HZ047	φ17.5	17.5	21.5	11.5	15	1.1
HZ048	φ30	30.5	37	11	29	0.85
HZ049	φ32	32.5	37	11	29	0.85
HZ050	φ34	34.5	38	12.2	28	1.2
HZ051	φ36	36.5	43	13	35	1.5
HZ052	φ42	43.5	51	13	39	1.5
HZ053	φ50	51	63	20	47	1.6
HZ054	φ52	52	69	13	57	1.6
HZ055	φ55	55	65	18	52	1.7
HZ056	φ60	60	66	14	57.5	1.8

Product Code	Matching Imperial Thread	Dimension (mm)
Product Code	Matching Imperial Thread	A	B	H	C	T
HZ057	G1/8	8.9	11.4	6.2	6.8	0.8
HZ058	G1/4	11.8	14	9.2	9.4	0.9
HZ059	G3/8	15.5	18.5	10	13.8	1
HZ060	G1/2	19.1	23.8	12	17	1
HZ061	G3/4	24.5	28.7	22	22	1
HZ062	G1"	31	37	11	29	0.85
HZ063	G1-1/8	36.5	43	13	35	1.5
HZ064	G1-1/4	40.5	46	14	36.7	1.5
HZ065	G1-1/2	45.8	54	13	42	1.8
HZ066	G2"	59	69	13	57	1.6

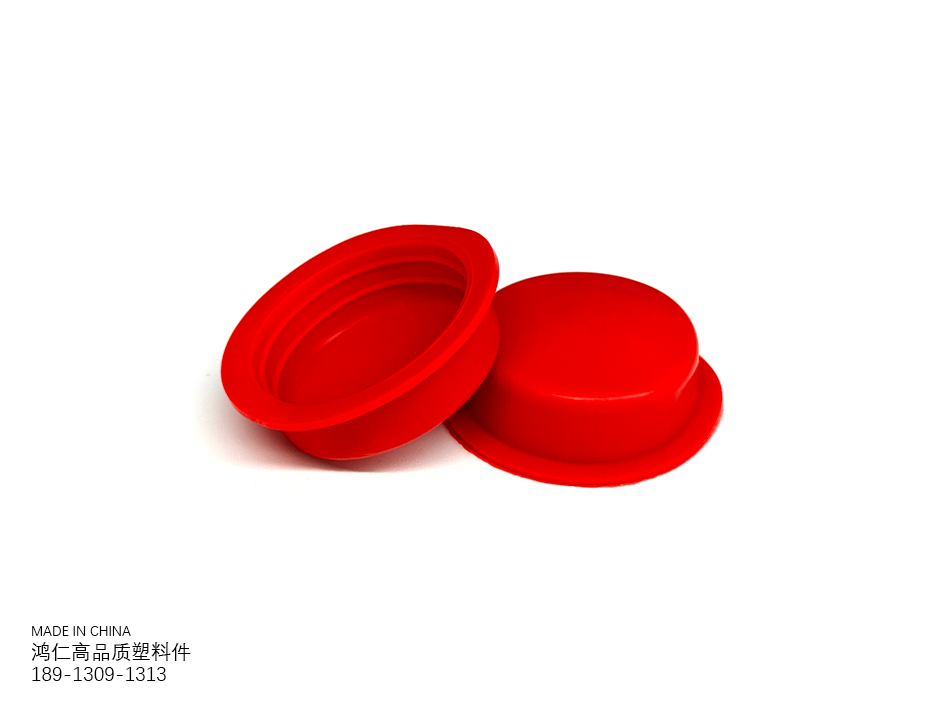

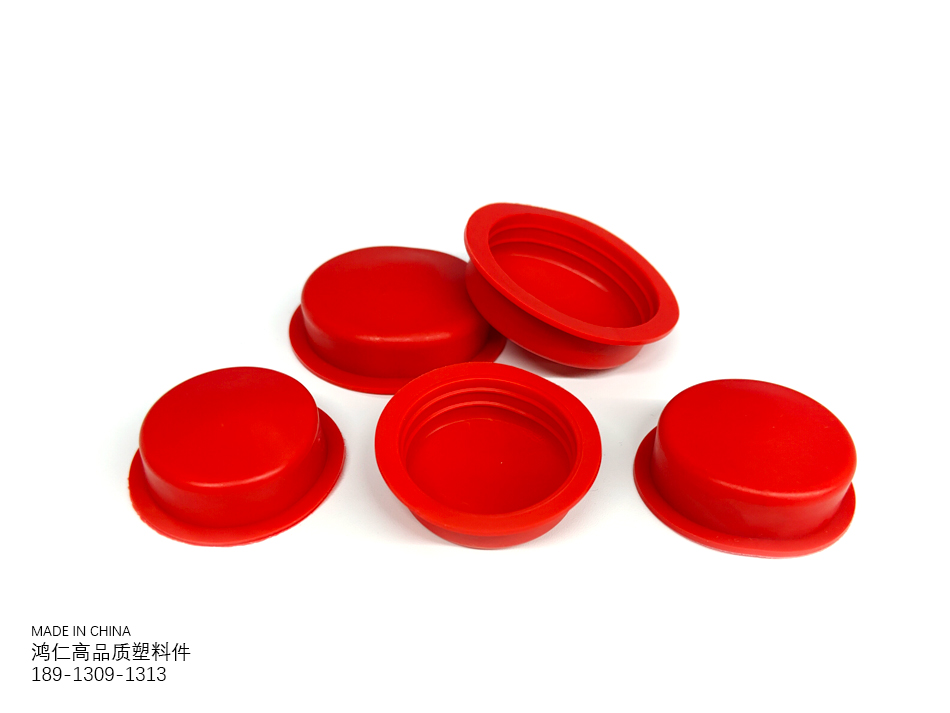

Product images

Packing
