Round PVC Flexi caps

2024-10-16 14:54　6050 Page View

‌


Flexible protective cap, soft protective cap, PVC protective cover

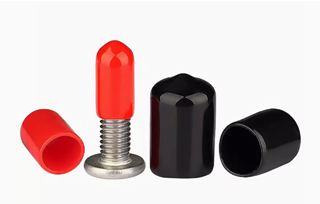

PVC Flexi caps

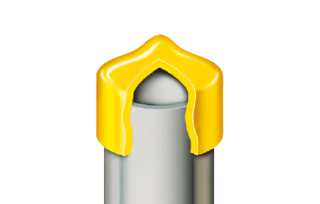

Durable cover with elasticity for many different applications
Exquisite vinyl appearance - suitable for finishing applications

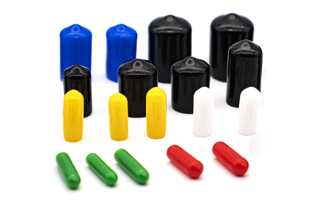

Rich color selection

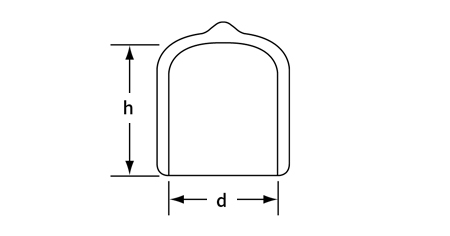

Number Thread Metric Thread BSP Thread UNF d (mm) h (mm)
HPVCY001 - - - 2 13
HPVCY002 M3 - - 2.8 13
HPVCY003 - - - 3.2 13
HPVCY004 M4 - - 3.6 13
HPVCY005 M4 - - 3.6 19
HPVCY006 M4 - - 3.6 25
HPVCY007 - - - 3.9 13
HPVCY008 - - - 3.9 19
HPVCY009 - - - 3.9 25
HPVCY010 M5 - 3⁄16" 4.4 13
HPVCY011 M5 - 3⁄16" 4.4 19
HPVCY012 M5 - 3⁄16" 4.4 25
HPVCY013 M5 - 3⁄16" 4.8 13
HPVCY014 M5 - 3⁄16" 4.8 19
HPVCY015 M5 - 3⁄16" 4.8 25
HPVCY016 - - - 5.2 13
HPVCY017 - - - 5.2 19
HPVCY018 - - - 5.2 25
HPVCY019 - - - 5.5 13
HPVCY020 - - - 5.5 19
HPVCY021 - - - 5.5 25
HPVCY022 M6 - 1⁄4" 5.9 13
HPVCY023 M6 - 1⁄4" 5.9 19
HPVCY024 M6 - 1⁄4" 5.9 25
HPVCY025 - - - 6.4 13
HPVCY026 - - - 6.4 19
HPVCY027 - - - 6.4 25
HPVCY028 - - - 7 13
HPVCY029 - - - 7 19
HPVCY030 - - - 7 25
HPVCY031 M8 - 5⁄16" 7.7 13
HPVCY032 M8 - 5⁄16" 7.7 19
HPVCY033 M8 - 5⁄16" 7.7 25
HPVCY034 - - - 7.9 13
HPVCY035 M8 - 5⁄16" 7.9 19
HPVCY036 M8 - 5⁄16" 7.9 25
HPVCY037 - - - 8.3 13
HPVCY038 - - - 8.3 19
HPVCY039 - - - 8.3 25
HPVCY040 - - - 8.7 13
HPVCY041 - - - 8.7 19
HPVCY042 - - - 8.7 25
HPVCY043 M10 1⁄8" 3⁄8" 9.5 13
HPVCY044 M10 1⁄8" 3⁄8" 9.5 19
HPVCY045 M10 1⁄8" 3⁄8" 9.5 25
HPVCY046 - - - 10.3 13
HPVCY047 - - - 10.3 19
HPVCY048 - - - 10.3 25
HPVCY049 M12 - 7⁄16" 11.1 13
HPVCY050 M12 - 7⁄16" 11.1 19
HPVCY051 M12 - 7⁄16" 11.1 25
HPVCY052 M12 - 1⁄2" 11.9 13
HPVCY053 M12 - 1⁄2" 11.9 19
HPVCY054 M12 - 1⁄2" 11.9 25
HPVCY055 - 1⁄4" 1⁄2" 12.7 13
HPVCY056 - 1⁄4" 1⁄2" 12.7 19
HPVCY057 - 1⁄4" 1⁄2" 12.7 25
HPVCY058 M14 - - 13.5 13
HPVCY059 M14 - - 13.5 19
HPVCY060 M14 - - 13.5 25
HPVCY061 M14 - - 13.8 13
HPVCY062 M14 - - 13.8 19
HPVCY063 M14 - - 13.8 25
HPVCY064 M15 - - 14.3 13
HPVCY065 M15 - - 14.3 19
HPVCY066 M15 - - 14.3 25
HPVCY067 - - - 15.2 13
HPVCY068 - - - 15.2 19
HPVCY069 - - - 15.2 25
HPVCY070 M16 3⁄8" - 15.9 13
HPVCY071 M16 3⁄8" - 15.9 19
HPVCY072 M16 3⁄8" - 15.9 25
HPVCY073 M18 - - 17.4 13
HPVCY074 M18 - - 17.4 19
HPVCY075 M18 - - 17.4 25
HPVCY076 M20 - 3⁄4" 19.1 13
HPVCY077 M20 - 3⁄4" 19.1 19
HPVCY078 M20 - 3⁄4" 19.1 25
HPVCY079 - - - 19.9 13
HPVCY080 - - - 19.9 19
HPVCY081 - - - 19.9 25
HPVCY082 - 1⁄2" - 20.6 13
HPVCY083 - 1⁄2" - 20.6 25
HPVCY084 - 1⁄2" - 20.6 38
HPVCY085 M22 - - 21.4 13
HPVCY086 M22 - - 21.4 25
HPVCY087 M22 - - 21.4 38
HPVCY088 - 5⁄8" 7⁄8" 22.2 13
HPVCY089 - 5⁄8" 7⁄8" 22.2 25
HPVCY090 - 5⁄8" 7⁄8" 22.2 38
HPVCY091 M24 - - 23.8 13
HPVCY092 M24 - - 23.8 25
HPVCY093 M24 - - 23.8 38
HPVCY094 M25 - - 24.6 13
HPVCY095 M25 - - 24.6 25
HPVCY096 M25 - - 24.6 38
HPVCY097 - - 1" 25.4 13
HPVCY098 - - 1" 25.4 25
HPVCY099 - - 1" 25.4 38
HPVCY100 M27 3⁄4" - 26.3 13
HPVCY101 M27 3⁄4" - 26.3 25
HPVCY102 M27 3⁄4" - 26.3 38
HPVCY103 M27 - - 26.9 13
HPVCY104 M27 - - 26.9 25
HPVCY105 M27 - - 26.9 38
HPVCY106 M30 7⁄8" 1 1⁄8" 28.6 25
HPVCY107 M30 7⁄8" 1 1⁄8" 28.6 38
HPVCY108 M30 7⁄8" 1 1⁄8" 28.6 50
HPVCY109 - 7⁄8" - 30.2 25
HPVCY110 - 7⁄8" - 30.2 38
HPVCY111 - 7⁄8" - 30.2 50
HPVCY112 - 1” 1 1⁄4" 31.8 25
HPVCY113 - 1” 1 1⁄4" 31.8 38
HPVCY114 - 1” 1 1⁄4" 31.8 50
HPVCY115 M35 - 1 3⁄8" 34.9 25
HPVCY116 M35 - 1 3⁄8" 34.9 38
HPVCY117 M35 - 1 3⁄8" 34.9 50
HPVCY118 M39 - 1 1⁄2" 38.1 25
HPVCY119 M39 - 1 1⁄2" 38.1 38
HPVCY120 M39 - 1 1⁄2" 38.1 50
HPVCY121 M42 1 1⁄4" - 41.3 25
HPVCY122 M42 1 1⁄4" - 41.3 38
HPVCY123 M42 1 1⁄4" - 41.3 50
HPVCY124 M45 1 3⁄8" - 44.5 25
HPVCY125 M45 1 3⁄8" - 44.5 38
HPVCY126 M45 1 3⁄8" - 44.5 50
HPVCY127 M48 1 1⁄2" - 47.6 25
HPVCY128 M48 1 1⁄2" - 47.6 38
HPVCY129 - 1 1⁄2” - 47.6 50
HPVCY130 - - 2" 50.8 25
HPVCY131 - - 2" 50.8 38
HPVCY132 - - 2" 50.8 50
HPVCY133 - 1 3⁄4” - 53.9 38
HPVCY134 - 1 3⁄4” - 53.9 50
HPVCY135 M58 2 1⁄4” - 57.2 38
HPVCY136 M58 2 1⁄4” - 57.2 50
HPVCY137 - 2 3⁄8” - 60.3 38
HPVCY138 - 2 3⁄8” - 60.3 50
HPVCY139 - 2 1⁄2” - 63.5 38
HPVCY140 - 2 1⁄2” - 63.5 50
HPVCY141 - 2 1⁄4” - 66 38
HPVCY142 - - - 66.7 38
HPVCY143 - - - 69.8 38
HPVCY144 - - - 69.8 50
HPVCY145 - 3" - 76.2 38
HPVCY146 - 3" - 76.2 50
