Pull Tab Flexi caps

2024-10-16 14:26　6222 Page View

‌

Flexible protective cap with handle, handle, soft protective cap, PVC protective cover

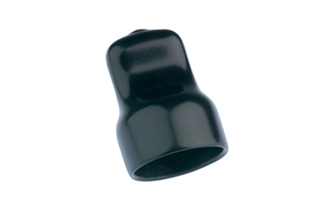

Pull Tab Flexi caps

It is especially suitable for situations where multiple

protections are required

Pull handle for easy removal

NumberThread MetricThread BSPThread UNFd (mm)h (mm)
HPVCL-0036-013M4--3.613
HPVCL-0048-013M4--4.813
HPVCL-0053-013M6-7⁄32"5.313
HPVCL-0061-013--1⁄4"6.113
HPVCL-0075-013---7.513
HPVCL-0075-025---7.525
HPVCL-0077-013 M8-5⁄16"7.713
HPVCL-0077-025---7.725
HPVCL-0087-013---8.713
HPVCL-0093-013M101⁄8"3⁄8"9.313
HPVCL-0093-025---9.325
HPVCL-0097-013---9.713
HPVCL-0097-025---9.725
HPVCL-0108-013--7⁄16"10.813
HPVCL-0108-025---10.825
HPVCL-0111-013---11.113
HPVCL-0111-025---11.125
HPVCL-0119-013M12-1⁄2"11.913
HPVCL-0119-025---11.925
HPVCL-0124-013-1⁄4"1⁄2"12.413
HPVCL-0124-025-1⁄4"1⁄2"12.425
HPVCL-0132-013M14-17⁄32"13.213
HPVCL-0132-025--13.225
HPVCL-0143-025M15-9⁄16"14.325
HPVCL-0153-013M16--15.313
HPVCL-0153-025---15.325
HPVCL-0159-025-3⁄8"5⁄8"15.925
HPVCL-0163-013M18-11⁄16"16.313
HPVCL-0163-025---16.325
HPVCL-0174-013M18--17.413
HPVCL-0174-025M18--17.425
HPVCL-0188-013M20-3⁄4"18.813
HPVCL-0188-025---18.825
HPVCL-0200-013---2013
HPVCL-0200-025---2025
HPVCL-0206-013M221⁄2"13⁄16"20.613
HPVCL-0206-025--20.625
HPVCL-0220-025-5⁄8"7⁄8"2225
HPVCL-0238-025---23.825
HPVCL-0246-013M25--24.613
HPVCL-0246-025M25--24.625
HPVCL-0251-025M26-1”25.125
HPVCL-0269-025--26.925
HPVCL-0286-025M307⁄8"11⁄8"28.625
HPVCL-0286-038M307⁄8"11⁄8"28.638
HPVCL-0312-038M321”11⁄4"31.238
HPVCL-0349-025M35-13⁄8"34.925
HPVCL-0349-038M35-13⁄8"34.938
HPVCL-0381-038M39-11⁄2"38.138
HPVCL-0381-050M39-11⁄2"38.150
HPVCL-0408-038--15⁄8"40.838
HPVCL-0445-038M4513⁄8"-44.538
HPVCL-0445-050M4513⁄8"-44.550
HPVCL-0508-050--2”50.850
