Side Handle Tapered Plug

2026-07-02 13:59　4679 Page View

‌

Side handle cone plug
Yellow PE
Yellow TPR Side Handle Tapered Plug
For valves, flanges, pipes, construction machinery, etc., it is resistant to oil, wear-resistant, has sealing and dust-proof properties, and is anti-aging.

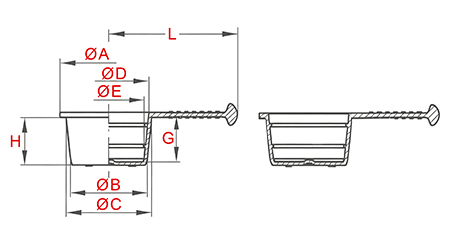

A	B	C	H	D	E	G	L
11	7	9	8.8	7.8	5.5	9.3	17.5
12	8	10	8.8	8.8	6.4	9.3	18
13	9	11	8.8	9.8	7.4	9.3	18.5
14	10	12	9.8	10.7	8.4	10.1	19
15	11	12.9	9.8	11.8	9.4	10.3	19.5
16	12	14	10.8	12.7	10.5	11.3	20
18	13	15	10.8	13.7	11.3	11.3	24
19	14.1	15.9	10.8	14.7	12.3	11.2	24.5
19.9	14.9	16.8	10.8	15.7	13.4	11.2	25
20.9	16.1	17.8	10.8	16.7	14.4	11.2	25.5
21.9	17.2	18.9	10.8	17.7	15.4	11.2	26
22.9	18.1	19.9	11.8	18.7	16.4	11.2	31.5
23.8	19.2	20.7	11.8	19.7	17.4	11.2	32
25	20.3	22.1	11.8	20.7	18.1	11.2	32.5
26	21	23	11.8	21.7	19.4	12.3	33
27	22	24	11.8	22.7	20.4	12.3	33.5
27.9	23.3	25	11.8	23.7	21.4	12.2	34
28.9	24.2	25.7	11.8	24.7	22.4	13.2	34.5
29.9	25.2	26.8	12.8	25.7	23.4	13.2	35
31.9	26.1	27.9	12.8	26.7	24.4	13.2	36
33.8	27.2	28.8	12.8	27.7	25.4	13.2	37
35	28.4	30	12.8	28.6	26.2	13	37.5

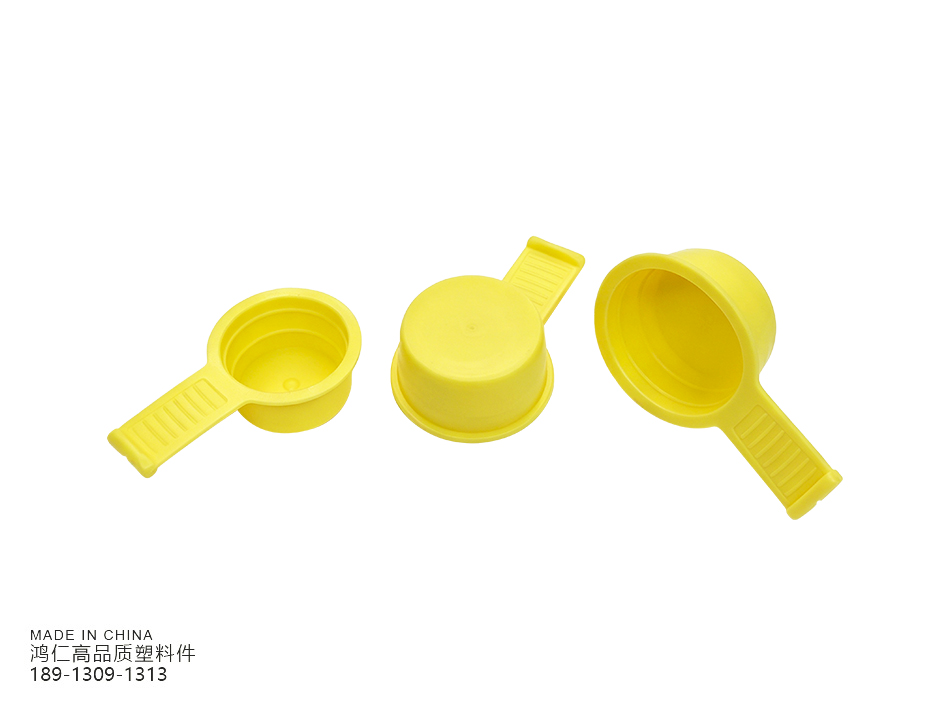

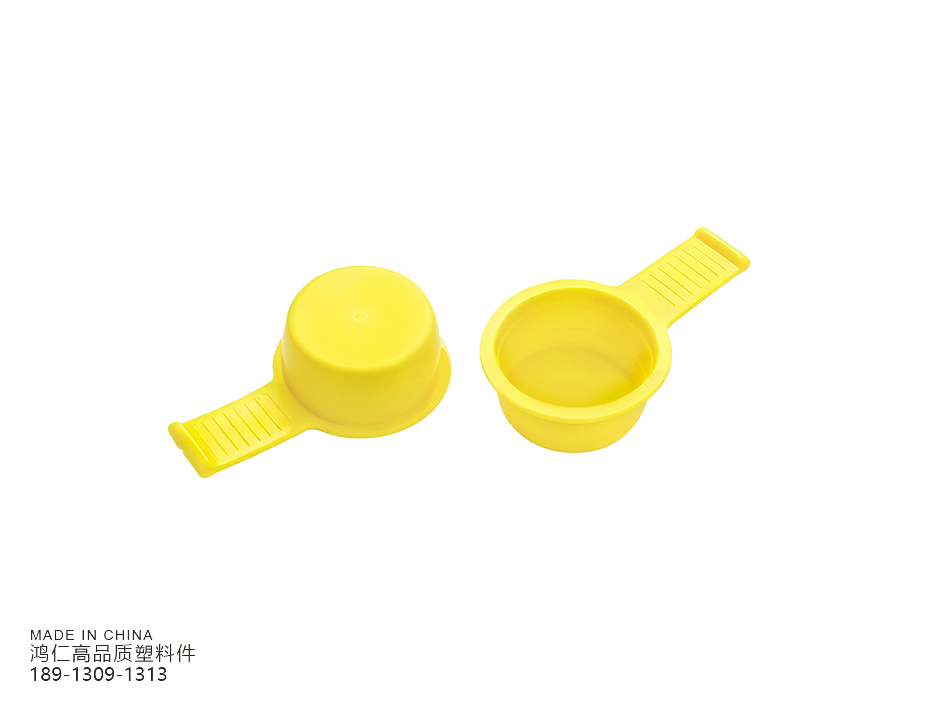

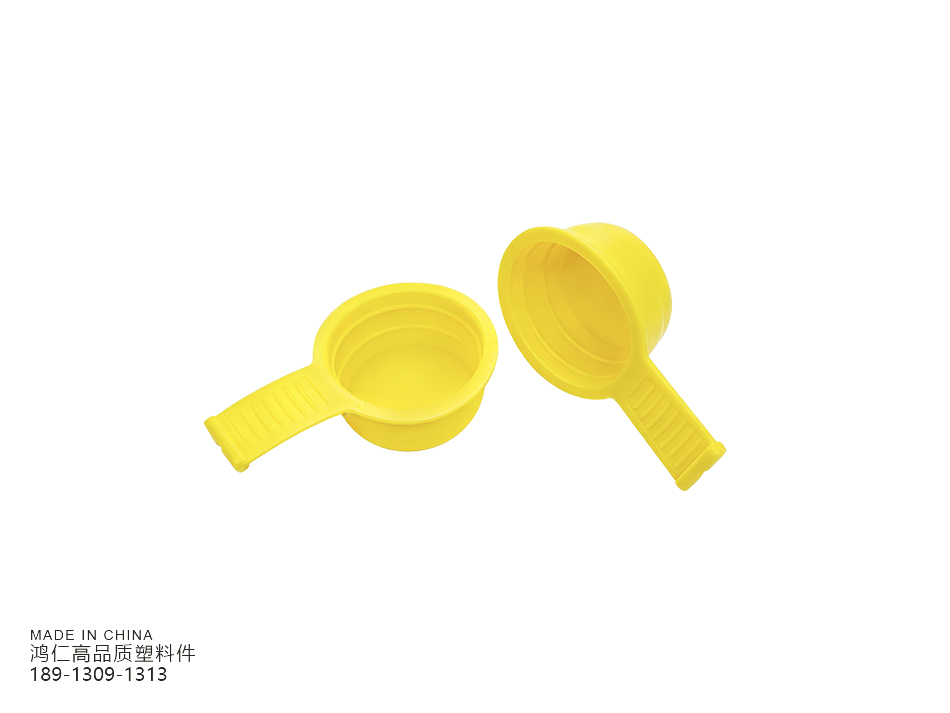

Product images

Packing
