Tapered Plug with Ring Tab

2024-10-22 11:14　3601 Page View

‌

Yellow LDPE
Tapered Plug with Ring Tab
Can be used as a lid and stopper
Protection for external and internal threads

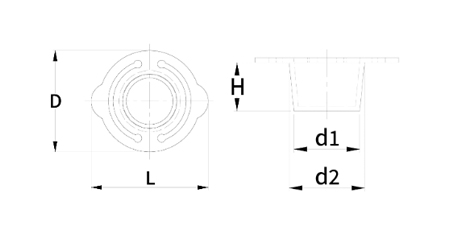

Number	L	D	d2	d1	H
HLHZX001	17.3	9.5	7	5	11
HLHZX002	18.2	9.5	8	6	11
HLHZX003	20.3	9.5	9.5	7	11
HLHZX004	20.3	9.5	10	8	11
HLHZX005	21.9	9.5	11.5	9.5	11
HLHZX006	22.6	9.5	12.5	10.5	11
HLHZX007	23.7	9.5	13.5	11.5	11
HLHZX008	24.5	10	14.5	12.5	11.5
HLHZX009	25.5	10	15.5	13.5	11.5
HLHZX010	26.3	10	16.2	14.2	11.5
HLHZX011	27	10	17	14.5	11.5
HLHZX012	28.3	10	18	15.5	11.5
HLHZX013	30	10	19.5	17.5	11.5
HLHZX014	30	10	20	18	11.5
HLHZX015	32	11	21.5	19	12.5
HLHZX016	34.7	11	24.2	21	12.5
HLHZX017	36	12	25.5	22.5	13.5
HLHZX018	38.5	12	28	25	13.5
HLHZX019	41.8	12	31.5	29	13.5
HLHZX020	42.5	12	32	29.5	13.5
