Centre Pull Plugs

2024-10-21 13:40　2424 Page View

‌

Red LDPE

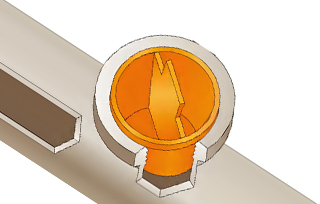

Centre Pull Plugs
The center puller is easy to assemble and remove
Provides dust, moisture and corrosion protection during storage and transportation

Number Thread Metric Thread UNF Thread BSP d1(mm) d2(mm) D(mm) h(mm) H(mm)
HLPZX001 M8 5/16" - 6.2 7.7 11.1 9.5 20.5
HLPZX002 - - - 6.8 8.5 11.9 10.3 15.9
HLPZX003 M10 7/16" 1/8" 8.4 10 13.5 9.5 20.5
HLPZX004 - 3/8" - 9.5 10.8 14 9.5 20.5
HLPZX005 - - - 9.2 10.9 15.1 9.5 19.1
HLPZX006 - - - 10.2 11.8 15.9 9.5 19.1
HLPZX007 M12 1/2" 1/4" 10.9 12.3 15.9 9.5 20.3
HLPZX008 - - - 11.4 13 16.7 10.3 14.3
HLPZX009 M14 9/16" - 11.7 13.7 17.2 11 22
HLPZX010 - - - 12.7 14.4 18.3 11.9 20.6
HLPZX011 M16 5/8" 3/8" 14.2 16 19 11.9 22.9
HLPZX012 - - - 14.7 17 20.6 13.5 19.1
HLPZX013 - - - 15.5 17.7 21.3 13.5 19.8
HLPZX014 M20 3/4" - 16.4 18.3 22.2 12.3 23.5
HLPZX015 - 13/16" 1/2" 17.8 20 23.8 13.7 24.5
HLPZX016 - - - 18.5 21 25.4 15 21.3
HLPZX017 M24 7/8" 5/8" 21.3 23.2 27 15.9 26.9
HLPZX018 - - - 22.1 24.7 28.5 19.1 25.4
HLPZX019 - 1” - 22.5 25.5 28.9 17.8 29
HLPZX020 M28,M30 11/8" - 24.7 27.7 32 19 30
HLPZX021 - - - 24.6 27.7 31.8 19.8 26.2
HLPZX022 - - - 26.1 29.1 34 19.1 25.4
HLPZX023 - - - 27.8 31 35.8 19.8 25.4
HLPZX024 - - - 29.2 32.7 39.4 19.1 25.4
HLPZX025 - - - 32.8 33.2 38.1 19.8 25.4
HLPZX026 - - - 33.3 37.2 41.2 19.1 25.4
HLPZX027 - - - 34.1 38.8 44.5 22.4 25.4
HLPZX028 - - - 36.9 40.7 44.5 19.1 25.4
HLPZX029 - - - 41 44.1 48.4 18.3 28.6
HLPZX030 - - - 45.9 49.2 54.9 25.4 31.8
HLPZX031 M52 - - 48.2 52.7 57.1 25.4 26.4
HLPZX032 M58,M60 - 2” 55 61 65 25 26
HLPZX033 M62 - - 59.3 67.3 70.6 30.7 31.5
HLPZX034 - - - 67.4 70.2 74.6 25 26
