Cross Groove Threaded Plugs

2024-06-18 10:56　5725 Page View

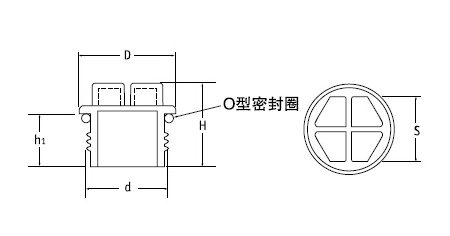

‌ 带O型圈螺黄色纹塞图纸.jpg

Cross Groove Threaded Plugs（HDPE)

Used in oil and gas, plumbing, and automotive sectors to protect threads.

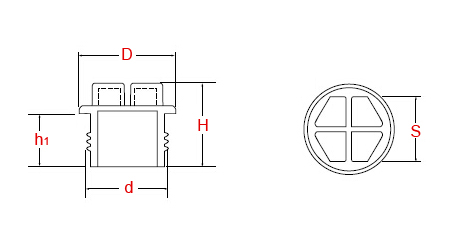

Thread type	Applicable thread(d)	D(mm)	H(mm)	h1(mm)	S(mm)
Metric Threads	M8x1	12	14.2	7	7
Metric Threads	M10x1	14	13.2	6	9
Metric Threads	M12x1	16	16.2	9	10
Metric Threads	M12x1.5	16	16.2	9	10
Metric Threads	M14x1.5	19	16.2	9	13
Metric Threads	M16x1.5	21	17.2	10	15
Metric Threads	M18x1.5	24	18.2	10	17
Metric Threads	M20x1.5	16	20.2	12	19
BSP/Gas Threads	1⁄8	14	16.2	9	9
BSP/Gas Threads	1⁄4	19	16.2	9	13
BSP/Gas Threads	3⁄8	21	17.2	10	15
BSP/Gas Threads	1⁄2	26	20.2	12	19
BSP/Gas Threads	3⁄4	32	20.2	12	24
BSP/Gas Threads	1”x11	40	20.2	12	30
BSP/Gas Threads	11⁄4	49	20.2	12	36
