Threaded O-ring plug - Cross thread
Yellow HDPE
Used in oil and gas, plumbing, and automotive sectors to protect threads

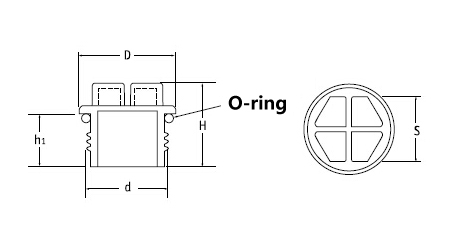

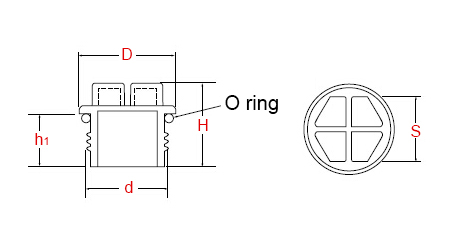

| Thread type |
Applicable thread (d) |
D(mm) | H(mm) | h1(mm) | S(mm) |
| Metric Threads |
M8x1 | 12.5 | 17 | 10 | 6 |
| Metric Threads |
M10x1 | 14.5 | 17.2 | 10 | 7 |
| Metric Threads |
M10x1.5 | 14.5 | 19.2 | 12 | 7 |
| Metric Threads |
M12x1 | 17 | 17.2 | 10 | 10 |
| Metric Threads |
M12x1.5 | 17 | 19.2 | 12 | 10 |
| Metric Threads |
M14x1.5 | 22 | 19.2 | 12 | 10 |
| Metric Threads |
M16x1.5 | 24 | 20.4 | 12 | 13 |
| Metric Threads |
M18x1.5 | 24 | 20.4 | 12 | 13 |
| Metric Threads |
M20x1.5 | 26 | 20.4 | 12 | 15 |
| Metric Threads |
M22x1.5 | 28 | 20.4 | 12 | 15 |
| Metric Threads |
M24x1.5 | 30 | 20.4 | 12 | 17 |
| Metric Threads |
M26x1.5 | 32 | 20.4 | 12 | 19 |
| Metric Threads |
M27x2.0 | 33 | 24.6 | 15 | 19 |
| Metric Threads |
M30x1.5 | 38 | 20.6 | 12 | 22 |
| Metric Threads |
M30x2.0 | 38 | 24.6 | 15 | 22 |
| Metric Threads |
M32x1.5 | 40 | 20.6 | 12 | 24 |
| Metric Threads |
M33x2.0 | 40 | 24.6 | 15 | 24 |
| Metric Threads |
M36x1.5 | 45 | 20.6 | 12 | 24 |
| Metric Threads |
M36x2.0 | 45 | 24.6 | 15 | 24 |
| Metric Threads |
M38x1.5 | 48 | 20.6 | 12 | 24 |
| Metric Threads |
M42x2.0 | 50 | 24.6 | 15 | 24 |
| Metric Threads |
M45x2.0 | 52 | 25 | 15 | 30 |
| Metric Threads |
M48x2.0 | 55 | 25 | 15 | 30 |
| Metric Threads |
M52x2.0 | 60 | 25 | 15 | 7 |
| UNF Threads | 3⁄8″x24 | 14 | 17.2 | 10 | 7 |
| UNF Threads |
7⁄16″x20 | 16 | 19.7 | 12.5 | 10 |
| UNF Threads |
1⁄2″x20 | 19 | 20.9 | 12.5 | 10 |
| UNF Threads |
9⁄16″x18 | 21 | 20.9 | 12.5 | 10 |
| UNF Threads |
5⁄8″x18 | 22 | 20.9 | 12.5 | 13 |
| UNF Threads |
3⁄4″x16 | 27 | 21.9 | 13.5 | 13 |
| UNF Threads |
7⁄8″x14 | 28 | 21.9 | 13.5 | 15 |
| UNF Threads |
1″x14 | 31 | 22.1 | 13.5 | 17 |
| UNF Threads |
11⁄16″x12 | 35 | 22.6 | 14 | 19 |
| UNF Threads |
13⁄16″x12 | 38 | 22.6 | 14 | 22 |
| UNF Threads |
15⁄16″x12 | 42 | 24 | 14 | 24 |
| UNF Threads |
15⁄8″x12 | 50 | 24 | 14 | 24 |
| UNF Threads |
17⁄8″x12 | 55 | 24 | 14 | 30 |
| BSP Threads | 1⁄8″x28 | 16 | 17.2 | 10 | 7 |
| BSP Threads |
1⁄4″x19 | 19 | 19.7 | 12.5 | 10 |
| BSP Threads |
3⁄8″x19 | 22 | 20.9 | 12.5 | 13 |
| BSP Threads |
1⁄2″x14 | 27 | 21.9 | 13.5 | 15 |
| BSP Threads |
5⁄8″x14 | 29.5 | 21.9 | 13.5 | 17 |
| BSP Threads |
3⁄4″x14 | 32 | 21.9 | 13.5 | 19 |
| BSP Threads |
7⁄8″x14 | 37 | 21.9 | 13.5 | 22 |
| BSP Threads |
1″x11 | 40 | 23.6 | 15 | 24 |
| BSP Threads |
11⁄4″x11 | 50 | 23.6 | 15 | 24 |
| BSP Threads |
11⁄2″x11 | 56 | 25 | 15 | 30 |
| BSP Threads |
13⁄4″x11 | 62 | 25 | 15 | 36 |
| BSP Threads |
2″x11 | 68 | 25 | 15 | 36 |
