Sealing Threaded Plugs

2024-06-17 16:26　5736 Page View

‌


Sealing Threaded Plugs

Yellow Nylon

Used in oil and gas, plumbing, and automotive sectors to protect threads.

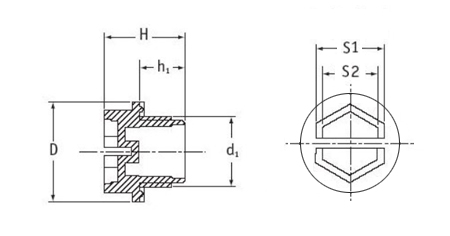

Thread type	Compatible Thread Size(d1)	D(mm)	H(mm)	h1(mm)	S1(mm)	S2(mm)
Metric Threads	M8x1	12.5	15.5	8	7	4
Metric Threads	M10x1	14.5	16.5	9	9	6
Metric Threads	M10x1.5	14.5	16.5	9	9	6
Metric Threads	M12x1	17	16.5	9	10	7
Metric Threads	M12x1.5	17	16.5	9	10	7
Metric Threads	M14x1.5	19	17.5	10	13	10
Metric Threads	M16x1.5	22.3	17.5	9.3	15	12
Metric Threads	M18x1.5	24	17.5	10	17	14
Metric Threads	M22x1.5	28	17.5	10	21	18
Metric Threads	M24x1.5	30	17.5	10	24	21
Metric Threads	M26x1.5	32	20.5	12	24	21
Metric Threads	M27x1.5	33	20.5	12	24	21
Metric Threads	M27x2	33	22	13.5	24	21
Metric Threads	M28x1.5	34	20.5	12	24	21
Metric Threads	M30x1.5	38	20.5	12	24	21
Metric Threads	M30x2	38	22	13.5	24	21
Metric Threads	M32x1.5	40	20.5	12	24	21
Metric Threads	M33x2	40	22	13.5	24	21
Metric Threads	M36x1.5	45	20.5	12	24	21
Metric Threads	M36x2	45	22	13.5	24	21
Metric Threads	M38x1.5	48	20.5	12	24	21
Metric Threads	M42x2	50	22	13.5	30	27
Metric Threads	M45x1.5	52	21.5	12	30	27
Metric Threads	M45x2	52	22	13.5	30	27
Metric Threads	M48x2	55	23	13.5	30	27
Metric Threads	M52x2	60	23	13.5	30	27
BSP Threads	1⁄8″x28	16	15.5	8	12	9
BSP Threads	1⁄4″x19	19	17.5	10	13	10
BSP Threads	3⁄8″x19	22	17.5	10	15	12
BSP Threads	1⁄2″x14	27	19.5	12	19	16
BSP Threads	3⁄4″x14	32	19.5	12	24	21
BSP Threads	1″x11	40	22.5	15	30	27
BSP Threads	13⁄4″x11	62	24	15	50	46
BSP Threads	2″x11	68	24	15	55	51
UNF Threads	3⁄8″x24	16	17.5	10	9	6
UNF Threads	7⁄16″x20	17	17.5	10	10	7
UNF Threads	1⁄2″x20	19	17.5	10	13	10
UNF Threads	9⁄16″x18	20.5	17.5	10	13	10
UNF Threads	5⁄8″x18	22	17.5	10	15	12
UNF Threads	3⁄4″x16	26	17.5	10	19	16
UNF Threads	7⁄8″x14	28.5	19.5	12	21	18
UNF Threads	1”x14	31.5	19.5	12	24	21
UNF Threads	11⁄16″x12	33	19.5	12	24	21
UNF Threads	15⁄16″x12	40	22.5	15	30	27
UNF Threads	15⁄8″x12	47.5	22.5	15	36	33
UNF Threads	17⁄8″x12	54	22.5	15	36	33
