Square Tube Sleeve

2024-10-15 16:42　7984 Page View

‌

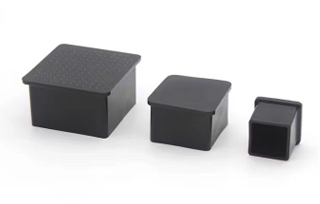

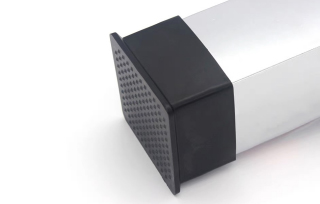

Soft rubber square tube sleeve, thick wall PVC tube sleeve protective cap

PVC caps

Effectively protect steel pipe end face, isolate sharp

Thick wall design for better protection and load-bearing

Anti-slip design at the bottom

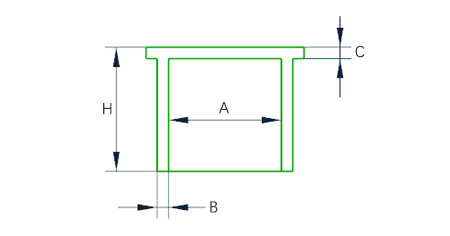

Number	Outside Diameter A	Wall Thickness B	Wall Thickness C	H
HGT1530	15x30	2	2	22
HGT2030	20x30	2	2	24
HGT2040	20x40	2	2	22
HGT2538	25.4x38.1	2	2	27
HGT2540	25x40	2	2	27
HGT3040	30x40	2.5	2	26
HGT3050	30x50	2	2	30
HGT3060	30x60	2	2	30
HGT4080	40x80	2.5	2	30
HGTF19	19x19	2	2	22
HGTF20	20x20	2	2	22
HGTF22	22x22	2	2	22
HGTF25	25x25	2	2	22
HGTF30	30x30	2.5	2	26
HGTF35	35x35	2.5	3	26
HGTF38	38x38	2.5	2	27
HGTF40	40x40	2.5	3	27
HGTF50	50x50	2.5	3	31
