Threaded Sealing Caps-UNF/BSP Threads

2024-06-18 10:56　5878 Page View

‌

Threaded Sealing Caps

Yellow HDPE

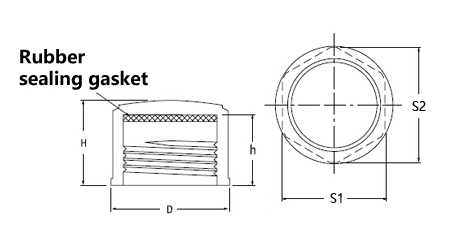

Rubber sealing gasket prevents liquid leakage

Thread type	Applicable thread	D	H	h	S1	S2
Metric Threads	M8x1	12	13	11	10	11
Metric Threads	M10x1	14.2	13	11	12	13.2
Metric Threads	M12x1	16.5	13	11	14	15.4
Metric Threads	M12x1.5	16.5	15	13	14	15.4
Metric Threads	M14x1.5	18.5	15	13	16	17.5
Metric Threads	M16x1.5	21	15	13	18	19.7
Metric Threads	M18x1.5	23	15	13	20	21.9
Metric Threads	M20x1.5	25	15	13	22	24.1
Metric Threads	M22x1.5	27.5	15	13	24	26.3
Metric Threads	M24x1.5	30	15	13	26	28.5
Metric Threads	M25x1.5	31	15	13	27	29.6
Metric Threads	M26x1.5	32	15	13	28	30.7
Metric Threads	M28x1.5	34	15	13	30	32.9
Metric Threads	M30x1.5	36.5	15	13	32	35.1
Metric Threads	M30x2	36.5	17	15	32	35.1
Metric Threads	M36x1.5	44.5	16	14	39	42.8
Metric Threads	M36x2	44.5	18	16	39	42.8
Metric Threads	M42x2	51	18.5	16	45	49.4
Metric Threads	M45x1.5	54.5	16.5	14	48	52.6
Metric Threads	M45x2	54.5	18.5	16	48	52.6
Metric Threads	M52x2	62	18.5	16	55	60.3
UNF Threads	1⁄4″x28	10	13.5	11.5	8	8.8
UNF Threads	3⁄8″x24	13	14.5	12.5	11	12.1
UNF Threads	716″x24	15.5	14.5	12.5	13	14.3
UNF Threads	7⁄16″x20	15.5	15	13	13	14.3
UNF Threads	1⁄2″x20	17.5	15	13	15	16.5
UNF Threads	9⁄16″x18	18.5	15.5	13.5	16	17.5
UNF Threads	5⁄8″x18	21	15.5	13.5	18	19.7
UNF Threads	3⁄4″x16	24	16.5	14.5	21	23
UNF Threads	13⁄16″x16	26.5	16.5	14.5	23	25.2
UNF Threads	7⁄8″x18	27.5	15.5	13.5	24	26.3
UNF Threads	7⁄8″x14	27.5	17.5	15.5	24	26.3
UNF Threads	1”x14	31	17.5	15.5	27	29.6
UNF Threads	11⁄16″x12	34.5	18.5	16.5	30	32.9
UNF Threads	13⁄16″x12	36.5	18.5	16.5	32	35.1
UNF Threads	15⁄16″x12	41	18.5	16.5	36	39.5
UNF Threads	13⁄8″x12	43	18.5	16.5	38	41.7
UNF Threads	17⁄16″x12	45.5	18.5	16.5	40	43.9
UNF Threads	15⁄8″x12	51	19	16.5	45	49.4
UNF Threads	13⁄4″x12	54.5	17	14.5	48	52.6
UNF Threads	17⁄8″x12	59	19	16.5	52	57
BSP Threads	1⁄8″x28	14	13	11	12	13.2
BSP Threads	1⁄4″x19	17.5	15	13	15	16.5
BSP Threads	3⁄8″x19	22	15	13	19	20.8
BSP Threads	1⁄2″x14	25	17	15	22	24.1
BSP Threads	5⁄8″x14	29	17	15	25	27.4
BSP Threads	3⁄4″x14	32	17	15	28	30.7
BSP Threads	7⁄8″x14	36	17	15	32	35.1
BSP Threads	1”x11	41	19	17	36	39.5
BSP Threads	11⁄4″x11	51	19	17	45	49.4
BSP Threads	11⁄2″x11	56	19.5	17	50	54.8
BSP Threads	2”x11	71	19.5	17	63	69.1
BSP Threads	21⁄4″x11	80	19.5	17	70	76.8
BSP Threads	21⁄2″x11	90	19.5	17	80	87.7
