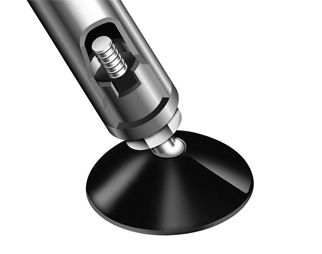

Articulated Feet Universal Adjustable Feet
Black PP
Stud structure with steel balls for inclined support
Carbon steel galvanized or stainless steel optional
It is especially suitable for situations where the Angle needs to be adjusted
Can be used with metal threaded square insert & glides
Number | Base Angle Diameter (mm) | Bolt Length (mm) | Thread Size |
HTJX001 | 25 | 25 | M6 |
HTJX002 | 32.5 | 25 | M6 |
HTJX003 | 25 | 12 | M8 |
HTJX004 | 25 | 25 | M8 |
HTJX005 | 32 | 12 | M8 |
HTJX006 | 32 | 25 | M8 |
HTJX007 | 38 | 12 | M8 |
HTJX008 | 38 | 25 | M8 |
HTJX009 | 47.5 | 12 | M8 |
HTJX010 | 47.5 | 25 | M8 |
HTJX011 | 25 | 15 | M10 |
HTJX012 | 25 | 38 | M10 |
HTJX013 | 25 | 50 | M10 |
HTJX014 | 32 | 15 | M10 |
HTJX015 | 32 | 38 | M10 |
HTJX016 | 32 | 50 | M10 |
HTJX017 | 38 | 15 | M10 |
HTJX018 | 38 | 38 | M10 |
HTJX019 | 38 | 50 | M10 |
HTJX020 | 47.5 | 15 | M10 |
HTJX021 | 47.5 | 38 | M10 |
HTJX022 | 47.5 | 50 | M10 |
